TETRA Portable Radios

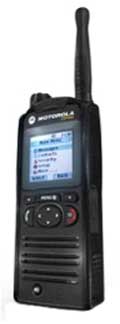

The CEP400 leverages advanced capabilities to deliver the reliable and robust
communications platform required by oil and gas, utilities, hospitality,
transportation and other commercial businesses.
1 Programmable rotary knob for volume control
and scrolling through to talkgroups
2 Easy to locate emergency button – situated
next to the base of the antenna
3 Loud speaker
4 Large, textured PTT button and programmable
5 Patented helical GPS antenna integrated into
6 130x130 pixels display with 65, 536
7 Loudspeaker button
8 Lower microphone – activated during
9 Programmable arrow keys for fast access to
10 Upper microphone – used during group calls

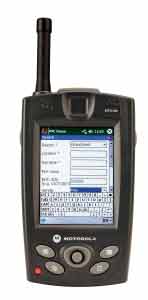

MTC100 TETRA Handheld Computer.
Safe. Secure. Reliable.
Public Safety, Local Government,
Transportation, Utilities and many
other user groups are all adopting
TETRA as the first choice for critical
The MTC100 offers a host of features designed to
enhance the productivity and effectiveness of its
users. Offering multi-mode wireless connectivity
users can be connected to enterprise data where
and when needed.
For mobile users in the field, TETRA provides a
secure wide-area data bearer – whether accessing
databases or submitting field reports. The optional
WiFi capability also allows connection to your
wireless LAN where available, providing flexibility
in access to mobile information.
• Integrated TETRA Modem for Wide Area
• Real-time secure access to information sources
to enhance decision making and reporting
• Windows Mobile® 5 OS with security and
• Secure applications environment offers device
management and data protection
• Ruggedised platform meeting IP54 and MIL
STD810-F specs to ensure reliable operation in
ECL’s Next Generation Radio network employs the most successful global radio technology ever to be designed. The highly acclaimed Terrestrial Trunked Radio (TETRA) has been deployed in over 1500 contracts, in all 5 continents and is used in the biggest integrated network in Europe enabling roaming across borders. The radio system has delivered outstanding new capabilities to millions of clients and the economies of scale help to keep pricing down for high tech products. TETRA has done for radio what GSM did for cellular telephony. While not quite the same technology, the concept for TETRA is best demonstrated in the USA under the name iDen by Nextel.
ECL’s Next Generation Radio network delivers the following features:
Press To Talk - conversation in normal radio mode
Individual Talk – talk privately one to one
Interconnect Mode – Use the radio as if it was a cell phone. Full duplex cellular quality speech. It can be connected to its own BTC number or your PBX.
Voice mail for inter-connect calls and individual calls.
SDS – text messaging.
WAP – Wireless Application Protocol enables business applications to be delivered to the handset or in vehicle mobile.
Low speed data connectivity – ideal for occasional, emergency or secure use such as credit card lines. A host of security, alarm, temperature tracking and logging applications are available.
The most modern handsets and vehicle mobiles can have GPS built in to manage corporate dispatch.
Point to Point mode - Direct Mode Operation for use in ships, tunnels or for private groups such as hotels. A limited communication capability is retained even if the entire network was destroyed.
The network is secure.
Additional unique features depending on handset:
Vibracall alerting, text and voice messaging
Gateway from building site, hotel or boat into the main network.. Ideal for extending range or coverage from otherwise impossible locations.
Canned messaging capability – use in dispatch, Police, Fire, taxis, hotel etc.
Radio and phone directory, just like a cell phone and includes caller ID.
The radios automatically reduce power to extend battery life just like a cell phone.
Emergency button to call dispatch, all users in a group or emergency services.

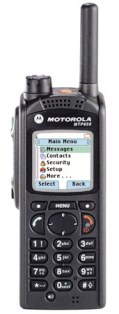

The MTP850 is Motorola’s latest TETRA portable terminal for mission critical mobile voice and data communications. By delivering fully integrated voice and data services it ensures users have access to up to date intelligence, enabling them to make truly informed decisions.
New users to the Operational Market who require a more ergonomically friendly product.
To support these new features and future enhancements, the terminal uses the latest chip set technology and offers:
Greater memory capacity.
Faster operation - with all the additional features and functionality, the user will not notice any difference in speed of operation when compared to the previous generation of terminals.
The increased battery life of the chip set is offset by the increased activity of the terminal, i.e. Built in GPS receiver sending terminal location messages.
Personal protection for staff is simply too important to be left to the individual. The MTP850 has been designed to protect users, with its high quality voice calls, large emergency button and its revolutionary location solution. The integrated satellite (GPS) location service provides the ability to automatically transmit user location direct to a dispatcher**. Ensuring lifethreatening situations are identified, located and resources allocated quickly.
Maintaining private and secure communications is increasingly important, with potentially sensitive information flowing back and forth. With this in mind the MTP850 has been designed to support the highest level of secure protection, from its integrated end-to-end encryption module to Motorola’s industry leading key management facility.

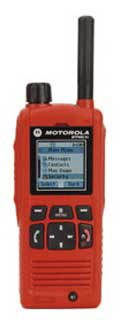

Motorola’s MTP850Ex TETRA portable terminal provides high quality communication with comprehensive user safety and class leading ATEX specifications allowing use when in environments containing potentially explosive gas and dust. Motorola is a world leader in the development and deployment of TETRA communication solutions, and the MTP850Ex ATEX TETRA radio delivers safe and reliable communications for users with a powerful set of features to harness the capability of TETRA.
High Performing Communication
Strong rugged design for optimum reliability in harsh conditions
Powerful, high quality audio in most demanding environments
Full range of supporting ATEX certified accessories to tailor customize solution
Comprehensive User Safety
ATEX & IEC-Ex gas and dust approvals
Integrated GPS for user location
High Performance Communication
The MTP850Ex delivers best in class audio performance in the typical noisy environments where specialist users from industry or public safety operate.

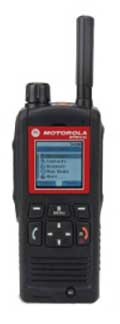

MTP810Ex ATEX TETRA Radio
Motorola’s MTP810Ex TETRA portable terminal provides high quality communication with comprehensive user safety and class leading ATEX specifications allowing use when in environments containing potentially explosive gas and dust. Motorola is a world leader in the development and deployment of TETRA communication solutions, and the MTP810Ex ATEX TETRA radio delivers safe and reliable communications for users with a powerful set of features to harness the capability of TETRA.
Covert TETRA Terminal
Design to Match the Mission
Motorola is a world leader in the development and
deployment of TETRA communication solutions, and

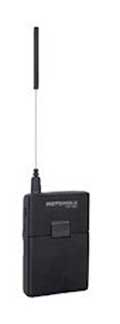

the new Discreet TCR1000 Covert TETRA Radio from
Motorola is the smallest, full function body worn TETRA
• Part of Motorola’s
highly capable and
TETRA Radio portfolio
• Secure Communication
for safety and
• TMO TETRA Class
2 / 3 Air Interface
Encryption (SCK, CCK,
• Air Interface
• End-End Encryption
• 1W, Class 4 Tx Power
• Whisper mode for
• Integrated GPS option
that allows users to
be located in need of
• Wide range of covert
accessories to give
officers flexibility in the
way the radio can be
• Connection to
extension battery for
• Uses the same
standard battery as
• CPS-Lite facility for
changing the talk
groups with a TETRA
• Unique body worn
option increases range
• Semi rigid antenna,
adds flexibility in terms
of how the radio can
MTP830 S TETRA Radio
Motorola’s MTP830 S TETRA portable radio is the ideal choice when working in extreme conditions. This radio delivers premium performance, whilst combining louder audio and enhanced erogonomics with simplified controls, allowing fire fighters and other first responders to focus on the task at hand.
Motorola is a world leader in the development and deployment of business critical communications solutions, and the MTP830 S defines a new benchmark in professional handheld communications
Simplified controls: Enlarged rotary knob, to allow for better radio glove-friendly functionality, thus allowing for easier control talk-group and volume settings.
Specialist accessories: Operating a radio under protective clothing can be challenging. Through our partnerships with world leading accessory suppliers, we’ve made this easier by ensuring that the MTP830 S can safely inter-operate with a wide range of specialist audio and push-to-talk equipment.
Man Down detector: This allows an emergency alert signal to be triggered at your control room when the radio exceeds preset motion timer and tilt angle thresholds.
Advanced GPS: You can configure the MTP830 S to send location reports when the emergency button is pressed – helping your control room staff coordinate a response more efficiently.
Automatic accessory sensing: The MTP830 S automatically adjusts audio settings based on pre-loaded profiles for detected accessories. It also enables you to select the best audio profile for different working environments.
Configurable user interface: You should not need to go through multiple key presses to get to the functions you need. With its configurable user interface, the MTP830 S helps keep button presses to a minimum.
Extended Operational Range: The combination of a highly sensitive RF receiver and transmission power that is adjustable to 1.8W provides extended operational range, helping you stay connected wherever work takes you.
Rugged Design: IP55 ingress protection means the MTP830 S is extremely weather resistant – giving you the robustness you require in a radio.
TETRA Mobile Radios
The MTM700 further reinforces Motorola’s focus and ongoing commitment to
developing high quality, highly durable TETRA solutions for operational users in
mission-critical or communication-vital environments.
The performance of Motorola’s second generation MTM700 radio builds upon
the excellent functionality of our first generation MTM300. The MTM700 is
complimented by the MTP700 portable radio. The mobile has been developed
for the professional user who requires full integration of voice, data and encryption
in one unit.
DURABILITY & ROBUSTNESS
Durability and robustness are
paramount on the MTM700, it has
passed our extremely rigorous Motorola
Accelerated Life Testing which
guarantees reliability, durability and
Superior audio specifications provide
the users with crisp, clear sound. The
audio quality is further enhanced by a
range of high performance audio
EASY TO USE
The fundamental features of the
MTM700 are easy to access by logical
• Large, clear graphical display
• Three programmable keys – allow
immediate operation of your most
(excluding Motorcycle version)
• Dedicated emergency button
HIGH PERFORMANCE DATA
High performance data capability with
short and packet data connectivity
enables the MTM700 to interface fully
with external devices facilitating a
wide range of value added applications.
The data box version has been
specifically developed to provide easy
interconnectivity for data applications.
VERSATILE AND ADAPTABLE
Five different variations of the MTM700
are available to suit specific operational
needs: the dashboard mount, remote
mount, desktop mount, motorcycle
version and data box.
STATE OF THE ART TECHNOLOGY
The latest processor technology
provides upgrade capability which
helps to guarantee that your mobile
will always have the most up to date
•Telephone style handset with hang-up cup
•Choice of antennas
•Key lock mount
•Desktop power supply
•RS232 data adapter cable
•Ignition sense kit
•External speaker 13 watts
•Compact external speaker 5 watts
TETRA Gateway / Repeater
Maximise system performance in
mission critical applications
Motorola’s CM5000 TETRA DMO Gateway
/ Repeater, developed in conjunction with
Cleartone, the leading provider of TETRA
Gateway/Repeater technology, enhances TETRA
radio performance and usability in locations
where coverage is compromised. Inside buildings,
underground locations or where handheld radio
coverage is limited, the CM5000 can extend the
reach of TETRA systems.
Key Benefits Include:
Multiple operating modes delivering powerful
TETRA mobile services
• Standard 5W TETRA Mobile
• DMO Gateway, extending network coverage
• DMO Repeater, enhancing Direct Mode
Proven capability & feature set
• Enhanced Data Performance
• Multi-slot packet data provides rapid access to
Integrated GPS option
• Enhance efficiency through ability to
• Locate users in need of assitance
Common User Interface
• Common keys and menu structures as other
Motorola TETRA terminals
• simplifies user training
Comprehensive, flexible installation options
• DIN Compatible, available in dash mount and
Common accessory portfolio
• Shared accessories with other Motorola mobile
TETRA Mobile Terminal
The MTM 800 is Motorola’s latest TETRA mobile terminal and is part of the new platform for mission critical mobile voice and data communication. By delivering fully integrated voice and data services it ensures users have access to up to date intelligence, enabling them to make truly informed decisions.
VOICE SERVICES SUPPORTED – GROUP:
• Group call – TMO/DMO
- Late Entry
- Group call via DMO Gateway
- TMO / DMO Talkgroup mapping
- Talk Group INDEX entry dialing via Keypad
- Hidden Talkgroups
• Direct Mode (DMO)
- DMO Gateway compatibility
- DMO Repeater compatibility
• Announcement Talk Group call
• Smart Emergency call - TMO / DMO (including “Hot Mic” option in TMO)
- to selected group, pre-defined group, including Emergency
- to individual or telephone/PABX subscriber
• Dynamic Group Number Assignment (DGNA) - (up to 2047 Groups)
- Accept DGNA assignment with attachment
• Local site trunking
- Background Scanning (Always Scan)
- Scan group attachment signaling
- Scan on/off status
- Support SwMI initiated attachment/detachment
• Talking Party Identification
• Priority Monitor
• Site Wide Call
VOICE SERVICES SUPPORTED –PRIVATE CALL:
• Half duplex/full duplex operation
• Flexible dialling (list scroll, short number dial, direct
entry, alphabetic search, last number called)
• Loud/discreet audio mode (via optional handset)
• Calling line Identification Presentation
• Busy User Pre-emption (Pre-emption Priority Call – PPC)
VOICE SERVICES SUPPORTED – TELEPHONE CALL
• Full duplex operation
• Hands free operation
• Flexible dialling (list scroll, direct dial, alphabetic search, speed dial, onetouch
dial, last number redial)
• DTMF overdial
• Calling line Identification Presentation
• Busy User Pre-emption (Pre-emption Priority Call – PPC)
TETRA MOBILE RADIO Enabling Current and Future Critical Communications
Key Benefits Include
Extended Operational Range
• Up to 10W transmit power, with class leading receiver sensitivity delivers comprehensive network coverage
• Integrated DMO Gateway, DMO Repeater capabilities ensure secure and resilient communications where needed most.
Superior Audio Performance
• Next generation audio architecture delivering the loudest and clearest audio performance of any Motorola TETRA mobile available on the market*
High Speed Data Connectivity
• TEDS Ready hardware - with a simple software license upgrade, enables 20x faster data connectivity for accessing back-office systems and databases.
• Integrated USB 2.0 PEI, enabling rapid radio programming and standardised interfacing to
data terminals and accessories. For additional flexibility, USB host and slave modes are also supported
Low User Migration Costs
• Familiar cellular style user interface and VGA colour display for enhanced usability and reduced staff
• Same user interface as market proven MTP850
portable and MTM800 Enhanced mobile radios
• Re-use of MTM800 Enhanced accessories
using GCAI connector
Enhanced End to End Encryption Options
• Integrated hardware for SIM based end to
• Universal Crypto Module option
*Assuming the appropriate audio accessory is used.
Advanced Terminal Management
• USB 2.0 interface for fast radio programming via Motorola’s integrated Terminal Management solution
• Over-The-Air terminal management capability
• Background Programming allows the radio to be programmed whilst staying fully functional
Flexible Installation Options
• Fully DIN-A compatible and available in Dash, Desk, Remote Head and Motorcycle mount formats
• Supports multiple control heads - an ideal solution for installations in trains, ambulances and fire vehicles where more than one control point might be required
• Works seamlessly with existing MTM800 Enhanced control heads
Rugged Design with Exceptional Reliability
• Includes IP67 control head option, for exposed and challenging environments
• Front and Rear rugged GCAI connector for reliable connection of audio and data peripheral equipment
• Mobile radio and accessories are performance matched for enhanced reliability
