1500

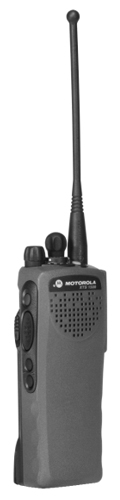

XTS 1500 PORTABLE RADIO FEATURES:



• Available in 700/800 frequency band (764-870 MHz)
• 3-watt power
• Supports APCO Project 16 (3600 control channel) and APCO Project 25 (9600 control channel)
• Works with ASTRO® Analog and Digital Trunking with Mutual Aid or ASTRO 25 Digital Trunking with Mutual Aid
• Meets Military Standards 810 C, D and E
• Utilizes Customer Programming Software and supports USB and RS-232
• Compatible with XTS 3000, XTS 3500, XTS 2500, HT 1000, MT 1000 and MTS 2000 portable radio accessories
• Supports enhanced audio features: noise reduction software and audio gain control



GENERAL SPECIFICATIONS
Frequency Range 764-870 MHz
Power Supply 7.5 V
Dimensions (mm) (HxWxD)
Less Battery 152.4 x 58.4 x 25.4
With NiCd Ultra-High Capacity 152.4 x 58.4 x 50.8
With NiMH Ultra-High Capacity 152.4 x 58.4 x 50.8
Weight (oz)
Less Battery 10.50
With NiCd Ultra-High Capacity 18.60
With NiMH Ultra-High Capacity 20.10
Average Battery Life (hr)
With NiCd Ultra-High Capacity 8
With NiMH Ultra-High Capacity 12



ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -30°C / +60°C
Storage Temperature -40°C / +85°C
Humidity Per MIL-STD
ESD IEC 801-2 KV
Water & Dust Intrusion IP54, MIL-STD

25001



ASTRO® XTS® 2500 and XTS® 2500I



MODEL I:
• PTT button
• On/Off volume knob
• Programmable orange emergency button
• 16-position top mounted rotary knob
• 3-position concentric switch
• Programmable monitor button
• 2 programmable side buttons
• Transmit LED indicator
• No keypad
• No display
• Up to 48 channels



FEATURES AND BENEFITS
• Available in 700/800 MHz, VHF, UHF R1, UHF R2 and 900 MHz* bands
• Trunking standards supported
– APCO Project 16 (3600 control channel) and
– APCO Project 25 (9600 control channel)
• System configurations
– ASTRO® Analog and Digital Trunking with Mutual Aid and
– ASTRO®25 Digital Trunking with Mutual Aid
• Narrow and wide bandwidth digital receiver (12.5 kHz, 20 kHz, 25 kHz)
• Embedded digital signaling (ASTRO & ASTRO 25)
• Enhanced Audio Features
– High quality, error corrected digital voice
– Noise Reduction Software
– Audio Gain Control

• Convenience Features
– Time / Date
– Caller ID
• Utilizes Windows-Based Customer Programming Software (CPS)
– Supports USB and RS-232 communications
– Built in FLASHport support
• Meets Mil Specs 810 C, D, E and F
• Compatible with most MTS and XTS accessories
• Available with an Immersible Housing Option
• Available with Secure Hardware Encryption



8

ASTRO® XTS® 2500 and XTS® 2500I



MODEL I.5:
Same as XTS Model I features plus the following:
• Large Bitmap Display
– 2 lines of icons
– 2 lines of text with 12 characters per line
– Status icons including battery and received signal strength indicator
• 96 Channels



FEATURES AND BENEFITS
• Available in 700/800 MHz, VHF, UHF R1, UHF R2 and 900 MHz* bands
• Trunking standards supported
– APCO Project 16 (3600 control channel) and
– APCO Project 25 (9600 control channel)
• System configurations
– ASTRO® Analog and Digital Trunking with Mutual Aid and
– ASTRO®25 Digital Trunking with Mutual Aid
• Narrow and wide bandwidth digital receiver (12.5 kHz, 20 kHz, 25 kHz)
• Embedded digital signaling (ASTRO & ASTRO 25)
• Enhanced Audio Features
– High quality, error corrected digital voice
– Noise Reduction Software
– Audio Gain Control

• Convenience Features
– Time / Date
– Caller ID
• Utilizes Windows-Based Customer Programming Software (CPS)
– Supports USB and RS-232 communications
– Built in FLASHport support
• Meets Mil Specs 810 C, D, E and F
• Compatible with most MTS and XTS accessories
• Available with an Immersible Housing Option
• Available with Secure Hardware Encryption



6



ASTRO® XTS® 2500 and XTS® 2500I



MODEL II:
Same as XTS Model I features plus the following:
• 870 channels
• Dial from pre-stored lists
• Programmable soft keys for easy access to radio menu
• Backlit Keypad
– 3 soft keys
– 3 navigation keys
• Large Bitmap Display
– 2 lines of icons
– 4 lines of text with 12 characters per line
– Status icons including battery and received signal strength indicator



FEATURES AND BENEFITS
• Available in 700/800 MHz, VHF, UHF R1, UHF R2 and 900 MHz* bands
• Trunking standards supported
– APCO Project 16 (3600 control channel) and
– APCO Project 25 (9600 control channel)
• System configurations
– ASTRO® Analog and Digital Trunking with Mutual Aid and
– ASTRO®25 Digital Trunking with Mutual Aid
• Narrow and wide bandwidth digital receiver (12.5 kHz, 20 kHz, 25 kHz)
• Embedded digital signaling (ASTRO & ASTRO 25)
• Enhanced Audio Features
– High quality, error corrected digital voice
– Noise Reduction Software
– Audio Gain Control

• Convenience Features
– Time / Date
– Caller ID
• Utilizes Windows-Based Customer Programming Software (CPS)
– Supports USB and RS-232 communications
– Built in FLASHport support
• Meets Mil Specs 810 C, D, E and F
• Compatible with most MTS and XTS accessories
• Available with an Immersible Housing Option
• Available with Secure Hardware Encryption



8



ASTRO® XTS® 2500 and XTS® 2500I



MODEL III:
Same as XTS Model I features plus the following:
• 870 channels
• Dial from pre-stored lists or direct entry
• Programmable soft keys for easy access to radio menu
• Backlit Keypad
– 3 soft keys
– 3 navigation keys
– 4 x 3 alphanumeric keypad
• Large Bitmap Display
– 2 lines of icons
– 4 lines of text with 12 characters per line
– Status icons including battery and received signal strength indicator



FEATURES AND BENEFITS
• Available in 700/800 MHz, VHF, UHF R1, UHF R2 and 900 MHz* bands
• Trunking standards supported
– APCO Project 16 (3600 control channel) and
– APCO Project 25 (9600 control channel)
• System configurations
– ASTRO® Analog and Digital Trunking with Mutual Aid and
– ASTRO®25 Digital Trunking with Mutual Aid
• Narrow and wide bandwidth digital receiver (12.5 kHz, 20 kHz, 25 kHz)
• Embedded digital signaling (ASTRO & ASTRO 25)
• Enhanced Audio Features
– High quality, error corrected digital voice
– Noise Reduction Software
– Audio Gain Control

• Convenience Features
– Time / Date
– Caller ID
• Utilizes Windows-Based Customer Programming Software (CPS)
– Supports USB and RS-232 communications
– Built in FLASHport support
• Meets Mil Specs 810 C, D, E and F
• Compatible with most MTS and XTS accessories
• Available with an Immersible Housing Option
• Available with Secure Hardware Encryption



40

XTS4000


The XTS4000 is the ideal solution to help maintain order and ensure secure communications in surveillance covert type operations. Designed to resemble the appearance of today's consumer communication devices, the XTS4000 allows agents to blend right into the crowd. Our digital, Project 25 portable radio delivers high quality communication in a light and discrete package for
those critical undercover applications.



Features and Benefits:
• Consumer look and feel
• Color Display
• APCO P25 Digital
• Supports 9600cc Trunking, 3600cc Trunking, Astro Conventional
• 512 Channel Capability
• UCM Type 3 FIPS Encryption
• Includes multikey and OTAR (Over the Air ReKey)
• VHF frequency (136 - 174 MHz)
• Supports vibrate mode and silent mode

• Conventional Call Features (ASTRO)
– Channel & Zone Selection
– Talk & Listen Talk group calls
– Emergency
– Secure (ADP and DES)
– Text Messaging
• Audio Accessories
• AC/DC charging accessories
• Meets Mil Specs 810 C, D, E and F
• Utilizes Windows-Based Customer Programming Software (CPS)
– Supports USB and RS-232 communications
– Built in FLASHport support

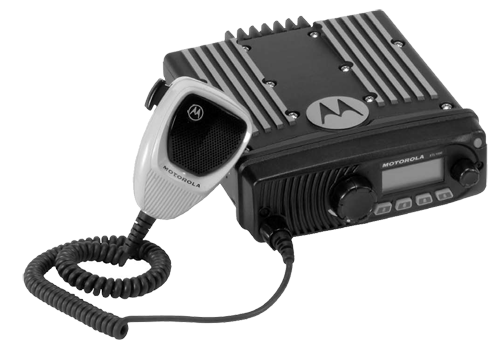

ASTRO® XTL™ 1500 Digital Mobile Radio



7

MODEL FEATURES
Frequency Bands
• 136-174 MHz
• 380-470 MHz
• 450-520 MHz
• 764-870 MHz
Power Levels
• 10-50 Watt (136-174 MHz)
• 10-40 Watt (380-470 MHz)
• 10-45 Watt (450-520 MHz)
• 10-35 Watt (764-870 MHz)
48 Channels (Standard)
Dual mode operation (ASTRO Digital and Analog)
9600 or 3600 Baud features
Project 25 capability on Conventional and Trunking systems
Project 25 compliance interoperable voice signaling features
Bandwidth Receiver
• 12.5/25/30 kHz (analog) – 136-174 MHz
• 12.5/25 kHz (analog) – 380-470 MHz and 450-520 MHz
• 12.5/20/25 kHz (analog) – 764-870 MHz
12.5 kHz bandwidth receiver (digital)
4 Programmable buttons
Emergency button
Dash mount

Meets Military Specs 810 (C,D, E and F)
Utilizes Windows®-based customer
programming software
Built in FLASHport™ support
Optional Keypad microphone
Internal Speaker
OTAP (Over the air programming)
AVAILABLE WITH SOFTWARE
ENHANCEMENT PACKAGE
512 Channels
Encryption capability (ADP)
Integrated voice and data capable

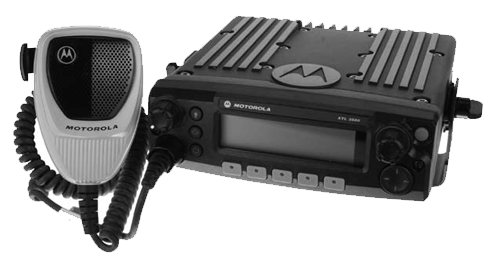

ASTRO® XTL™ 2500 Digital Mobile Radio

2500

MODEL FEATURES
Frequency Bands
• 136-174 MHz
• 380-470 MHz
• 450-520 MHz
• 764-870 MHz
Power Levels
• 10-50 Watt (136-174 MHz)
• 10-40 Watt (380-470 MHz)
• 10-45 Watt (450-520 MHz)
• 10-35 Watt (764-870 MHz)
• 25-110 Watt (136-174 MHz)
• 25-110 Watt (380-470 MHz)
870 Channels (Standard)
Dual mode operation (ASTRO Digital and Analog)
9600 and 3600 Baud capable
Project 25 capability on Conventional and Trunking systems
Type II Trunking Only
Project 25 compliance interoperable voice signaling features
Integrated voice and data capable Bandwidth Receiver
• 12.5/25/30 kHz (analog) – 136-174 MHz
• 12.5/25 kHz (analog) – 380-470 MHz and 450-520 MHz
• 12.5/20/25 kHz (analog) – 764-870 MHz
12.5 kHz bandwidth receiver (digital)
5 Programmable buttons x 4 deep in menu functions
14 digit character display
Tri-color Backlit LCD display
Emergency button
Multi level display dim button
Dash/Remote mount
Meets Military Specs 810 (C,D, E and F)

Utilizes Windows®-based customer
software programming
Built in FLASHport™ support
Optional Keypad microphone
External Speaker
USB/RS232 connectivity
Optional Siren PA
Optional DEK
Upgradable
Encryption Capable:
• Type III (optional)
• Allows for MultiKey for single algorithms ONLY
• Algorithms supported:
- DVI-XL
- DVP-XL
- DES
- DES-XL
- DES-OFB
- AES
- Advanced Digital Privacy (ADP)
Dual Control Head
OTAP (Over-the-air programming)
Tactical OTAR (Over-the-air re-keying)
Text Messaging

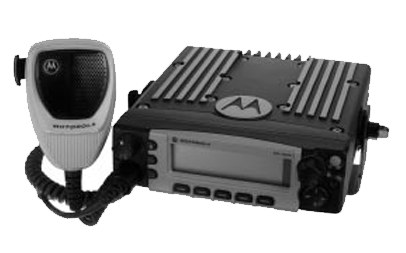

ASTRO® XTL™ 5000 Digital Mobile Radio

500



MODEL FEATURES
Frequency Bands
• 136-174 MHz
• 380-470 MHz
• 450-520 MHz
• 764-870 MHz
Power Levels
• 10-50 Watt (136-174 MHz)
• 10-40 Watt (380-470 MHz)
• 10-45 Watt (450-520 MHz)
• 10-35 Watt (764-870 MHz)
• 25-110 Watt (136-174 MHz)
• 25-110 Watt (380-470 MHz)
850 Channels (Standard)
Dual mode operation (ASTRO Digital and Analog) 9600 and 3600 Baud capable
Project 25 capability on Conventional and Trunking systems
Type II Trunking Only
Project 25 compliance interoperable voice signaling features
Integrated voice and data or RS232 capable Bandwidth Receiver
• 12.5/25/30 kHz (analog) – 136-174 MHz
• 12.5/25 kHz (analog) – 380-470 MHz and 450-520 MHz
• 12.5/20/25 kHz (analog) – 764-870 MHz

12.5 kHz bandwidth receiver (digital)
5 Programmable buttons x 4 deep in menu functions
14 digit character display
Multiple Color Backlit LCD display
Emergency button
Multi level display dim button
Dash/Remote mount

Meets Military Specs 810 (C,D, E and F)
Utilizes Windows®-based customer
programming software
Built in FLASHport™ support
Optional Keypad microphone
External Speaker
USB/RS232 connectivity
Optional Siren PA
Optional DEK
Upgradable
Encryption Capable:
• Type III (optional)
• Allows for MultiKey for single algorithms ONLY
• Algorithms supported:
- DVI-XL
- DVP-XL
- DES
- DES-XL
- DES-OFB
- AES
- Advanced Digital Privacy (ADP)
Reuse of most ASTRO/MCS accessories



  © 2011 MobilePhone
