PMP 100

Extend broadband services for Internet access, voice over IP, video services, and security surveillance - at a cost much lower than wired alternatives.

The PMP 100 combines field-proven toughness with exceptional performance, security, ease-of-use and cost effectiveness. Modules are available with total throughputs up to 14 Mbps and are available in frequencies from 900 MHz to 5 GHz. Join the tens of thousands of network operators who have deployed PMP 100 solutions to be their business case a success.

PMP 100 Series product throughput:
AP 105 – Cost effective AP for low density locations
PMP 110 – From 1 to 7 Mbps
PMP 120 – 7 Mbps
PMP 130 – 14 Mbps

PMP 320

The Point-to-Multipoint 320 is a cost-effective, easy to install, licensed, fixed, outdoor wireless broadband access network solution. WiMAX 802.16e interoperability enables reliable data, voice and video connectivity applications for service providers, enterprise network operators, and government entities.

Connect businesses and remote office locations with high performance, 802.16e standard technology in the licensed spectrum. The PMP 320 is optimized for long range, fixed, outdoor applications and does not need costly base stations ASN gateways required to support mobility.

Enterprises can establish cost-effective links to campus locations or remote branch offices at a fraction of the cost of leasing lines or deploying wireline broadband systems.
Rapid access to business information between locations.
Wireless infrastructure to connect indoor wireless local area network (WLAN), creating a completely wireless IP network and connecting inside to outside.

Government Network Operators can establish cost-effective links for public safety, public service, and public access.
Rapidly deploy video surveillance and data connectivity for public safety Create a cost effective data network for public works.

Service providers can enhance their customer base and revenues by extending their network to reach new business and residential subscribers beyond the reach of wireline broadband offerings.
Complement existing broadband network to reach customers in new territories, whether adjacent to an existing network or a completely new region.
Offer wireless broadband services to existing subscribers currently using dial-up; alternative to other equipment like DSL and cable

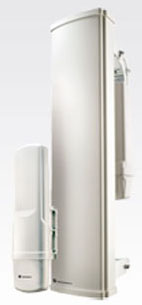

PMP 430

Connect with high performance in the 5 GHz band. The PMP 430 with OFDM technology delivers 40+ Mbps throughput, ranges up to 30 miles (48 km) and near-line of sight (nLOS) performance for reliable and secure data, voice and video connectivity. With low one-way latency of less than 3.5 msec the PMP 430 is ideal for sensitive voice and video services. SMs can be upgraded from 4 Mbps throughput to 40 Mbps via a software key system to meet customers' growing need for bandwidth.

Enterprises, government organizations and service providers can extend high-speed connectivity to reach unserved and hard-to-reach locations and customers.

High Throughput
Extended Range and Coverage
Scalability
Low Latency
Compatibility

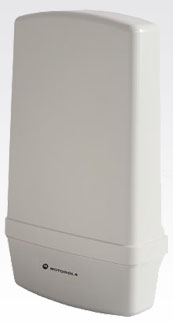

PMP 49400

Municipalities, counties and local governments need reliable, high-quality broadband connectivity at a low investment cost to provide safety and services to the citizens of their communities. The high performance PMP 49400 provides reliable wireless broadband connectivity in the 4.9 GHz spectrum.

The PMP 49400 provides:
Near Line of Sight (nLOS) Access with OFDM (Orthogonal Frequency Division Multiplexing) technology.
21 Mbps Throughput for Voice Over Internet Protocol (VoIP), video surveillance, high-speed Internet access, and multiple voice connections.
Long Range Connectivity to distances of five miles (eight kilometers) or more per AP cluster.

PMP 400

Connect to near-line of sight (nLOS) locations in the 5 GHz band. The PMP 400 with OFDM tech­nology delivers 20+ Mbps throughput, ranges up to 4 miles (8 km) nLOS performance for reliable and secure data, voice and video connectivity. With low one-way latency of less than 3.5 msec the PMP 400 is ideal for sensitive voice and video services.

Connect enterprise and government businesses and remote locations with the high performance PMP 400.

The PMP 400 provides:
- Near Line of Sight (nLOS) Access with OFDM (Orthogonal Frequency Division Multiplexing) technology.
- 21 Mbps Throughput for Voice Over Internet Protocol (VoIP), video surveillance, high-speed Internet access, and multiple voice connections.
- Long Range Connectivity to distances of five miles (eight kilometers) or more per AP cluster.

Wireless Manager

You can achieve better uptime through better visibility of your network with the Motorola Wireless Manager. This network management software tool offers breakthrough map-based visualization capabilities using embedded Google maps, and combined with advanced configuration, provisioning, alerting and reporting features you can control your entire outdoor wireless network including Mesh Wide Area Network, and Point-to-Multipoint and Point-to-Point solutions as well as other SNMP enabled devices. With its powerful user interface you will not only be able to control your network's access, distribution and backhaul layers, but you will also have visibility to WLAN sites and be able to quickly launch Motorola's indoor management systems.

Template-Based Configuration
With Wireless Manager's user-defined templates you can accelerate the process for the configuration of the devices you add to your network resulting in quicker and easier deployments. The template-based functionality provides an automated way to configure large numbers of network devices with just a few mouse clicks, and can be scheduled to occur at any time via Wireless Manager's Task Scheduler.

Ultralight Thin Client
With the growing mobile workforce it is important to have access to the status of your network at any time. With Wireless Manager you can view the status and performance of your entire wireless network via a compact web interface accessible by your smart phone.

Map-Based Visualization
Wireless Manager overlays sophisticated real-time information about your network elements onto building layouts and dynamic Google maps. Visuals can be scaled to view an entire city or building or a specific area, floor or link.

High Availability Architecture Support
Wireless Manager offers a high availability option, providing a highly reliable and redundant network management solution that ensures you always have management access to your network.

High Scalability
The enhanced Wireless Manager offers you server scalability with support for up to 10,000 nodes as well as support for distributed server architecture.

CRYPTR 2 Broadband IP Encryption Unit

With critical information depending on wireless communications, customers need end-to-end encryption solutions they can rely on: cost-effective, rugged, flexible and interoperable. Motorola’s CRYPTR 2 Broadband IP Encryption unit is designed for use in mobile networks to provide reliable, end-to-end encrypted communications. When paired with Motorola’s industry-leading broadband networks, CRYPTR 2 is part of the secure communications solution customers need for increasingly demanding mission requirements.

CRYPTR 2 uses Advanced Encryption Standard (AES), suitable for secure applications. Its low size, weight and power requirements coupled with its ruggedness allow flexible installation and power options, and its unique QoS-aware features help maximize the utility of broadband wireless networks.

Full Suite B Solution
Suite B IPSEC (RFC 4869)
AES, Elliptic Curve Cipher Suites

FIPS 140-2 Compliant

Small and Rugged
1.75 lbs. (800 g)
1.5 x 5.7 x 4.7 in (39 x 145 x 120 mm)
Sealed to prevent water and dust intrusion
Locking power cable connector

Remote Management
SNMPv3 Management and Monitoring

Remote Rekey and Zeroize
Motorola Key Management Facility (TIA APCO Project 25 compliant)

Designed for Wireless Broadband Mobility
20Mb Throughput
QoS Support

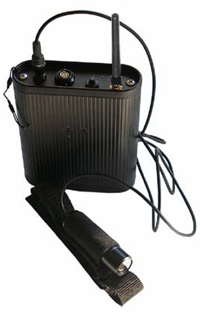

Personal Video Encoder – Darim PVE400M24

The Personal Video Encoder (PVE) is a portable device which enables a connected video
camera’s video and audio outputs to be transmitted over a wireless broadband network
enabling a range of monitoring and surveillance solutions to be realised.
The PVE is ideally suited to being deployed on Motorola’s MOTOMESH Solo and Quattro
networks as it accepts the WMC cards that use Motorola’s Mobility Enabled Access (MEA)
technology.
The specific variant of the PVE that operates on MOTOMESH Solo or Quattro systems in the
2.4GHz range is the PVE400M24.
